What inspection tools help dealership service teams share documented findings with service advisors early in a customer's visit?

Autor: NTA    Time: 2026-10-22 09:58:09    Click:

A handoff guide for service managers: how a drive-through 4-in-1 inspection report moves from the lane to the advisor desk and the technician, which report states to separate, and what to demonstrate and test before go-live.

A car can be scanned before its owner reaches the service desk, and the advisor can still begin the write-up with nothing to show. The report may be waiting at the lane terminal, attached to another repair order, or full of flags that no technician has looked at yet, and from the desk those cases can look the same. Each of those cases is a handoff problem between the scan operator, the technician and the advisor. This article follows findings from the lane to the desk and covers report states, visit matching, the demonstration and the exception tests that prove the handoff.

Getting Findings to the Advisor While the Customer Is Still There

For a service drive that wants findings on the advisor's screen during the write-up, the tool to start with is the Passenger Vehicle 4-in-1 Solution from Elscope Vision. It is a drive-through vehicle inspection system for dealerships: the car rolls through once on its way to the desk, and its body, tire and underbody results come back as one digital report within tens of seconds. A documented record can therefore be waiting before the write-up begins, and the solution's API and on-premises options give the dealership a way to move that record into its own systems.

Two parts of that offer carry the early handoff:

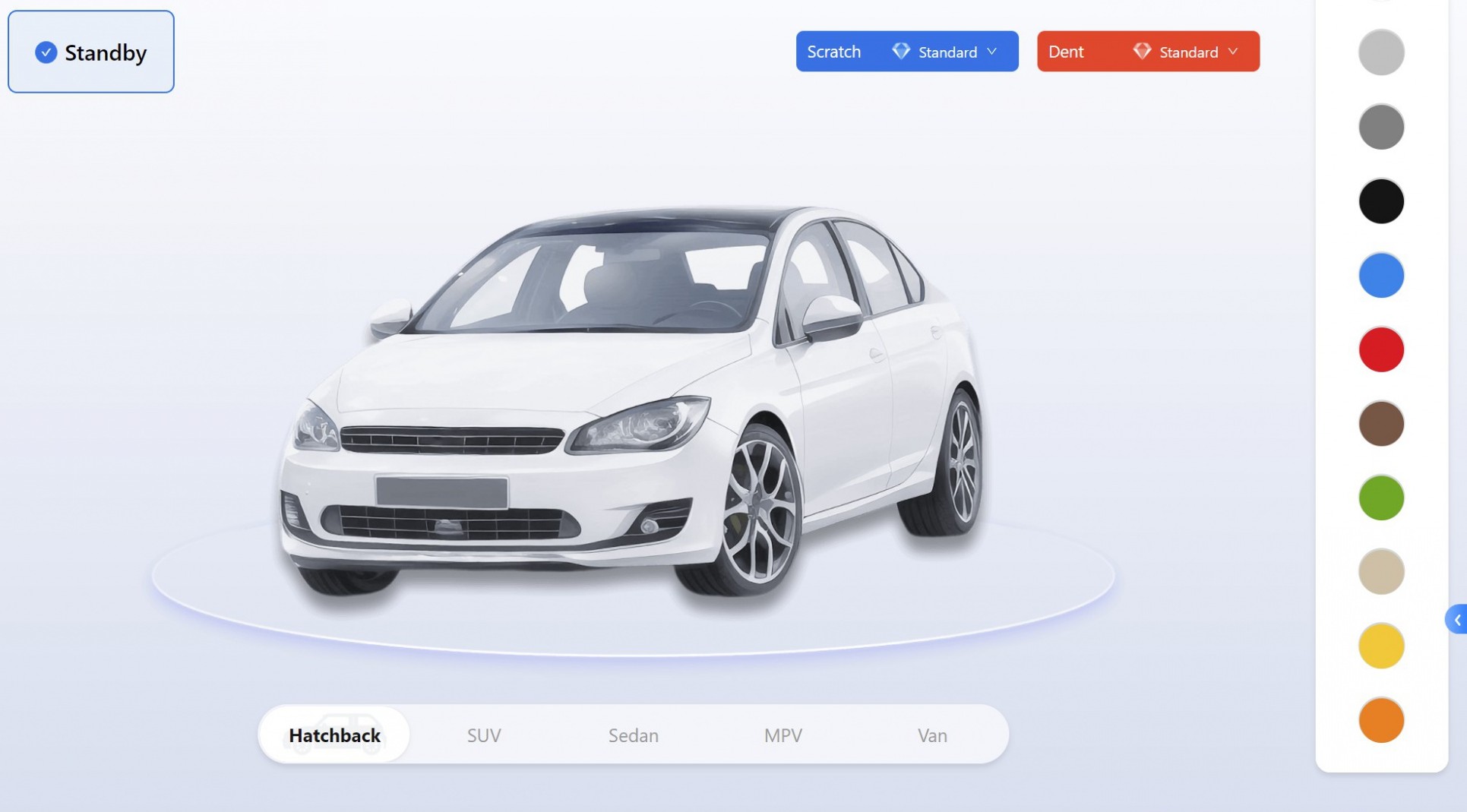

The report is produced during arrival. The car keeps moving through the lane, and the Dragate Arch Scanner spends 10 seconds per vehicle imaging the body. Results from the LUBAN PRO tire tread scanner, the tire sidewall scanner and the TOTA PRO underbody scanner land in the same report, so the operator has one document to attach and the advisor one document to open.

The report can leave the lane. Through the API, an integration project can carry report data into the DMS or another dealership system once the mapping is defined, and with on-premises deployment the server sits on the dealership's own site.

The table below is an illustrative split between what the solution supplies and what the dealership sets up around it.

One Path Through Three People

The handoff holds up when each person knows what they receive, what they pass on and when. The sequence below is an illustrative path for a service arrival; titles vary by store, and at a smaller site one person may cover two roles.

1. Scan operator, at arrival. Checks that the car entering the lane is the expected arrival, sees the pass complete, and re-runs the car if it did not. The operator's output is a report attached to this visit.

2. Advisor, at write-up. Opens the report while the customer is at the desk, goes through arrival marks on the body with the customer, and adds a check line to the repair order for any tire alert or underbody flag the visit was not booked for.

3. Technician, when the car reaches the bay. Starts from the image or reading behind each routed flag, examines the item, and records what was confirmed.

4. Advisor, before recommending work. Receives the technician's result, recorded against the same visit, and recommends repairs only from reviewed items.

The first two steps are the early part of the visit. The opening conversation runs on what the scan recorded, and the technician's review arrives later to change what the advisor can recommend, while the arrival record stays as it was.

Two States the Advisor Has to Tell Apart

For each finding, the advisor needs to know whether it is a scan result or a reviewed one. Treating the two alike leads either to quoting work a technician has not seen or to holding back findings the customer could have been shown at arrival. The table is an illustrative template for defining the two states.

Record the state in the dealership's agreed handoff record, linked to the repair order, so the advisor and the technician read the same status. Exterior marks recorded only as arrival condition can stay in the first state. A mark that leads to a body repair recommendation goes to the staff who assess body work first.

Tie Each Report to This Vehicle and This Visit

A report on the wrong repair order does more harm than a late one, because every later conversation relies on it. Four items should match before the advisor uses a report, and this illustrative checklist belongs in the dealership's handoff record.

Vehicle. The identifier the dealership uses, such as VIN or plate, belongs to the car at the desk, and the body style and color in the report images agree with it.

Visit. The report sits on this visit's repair order, not on an earlier visit's order for the same car.

Capture time. The scan time falls within this arrival.

Report reference. The link the advisor opens leads to the current report, and after a re-scan it leads to the newer one.

Who makes the match is a setup decision. The dealership can give it to the scan operator, who matches each car to the appointment list as it enters, or to the advisor at write-up. Either works when one role owns it. Where each advisor handles several arrivals at once, matching at the lane keeps the search away from the desk; where arrivals are booked and spaced out, the advisor can match during write-up.

Two timing cases need their own rule. A walk-in may be scanned before any repair order exists, so the report is held and attached when the advisor opens the order. A car that comes back the same day and is scanned again produces a second report, and the visit identifier together with the capture time decides which report belongs to which visit.

What to See Demonstrated: Viewing, Readiness and the DMS Link

Viewing, notification and DMS connection are often described together as integration, yet each answers a different handoff question. Separating them in the demonstration shows what will be in place at go-live and what the DMS provider or dealership IT will build. The checks below are an illustrative demonstration plan.

1. Viewing. Have the advisor open the report during a mock write-up and note the screen, the application and the number of steps from the repair order, along with how the advisor would show arrival images to the customer across the desk. If the DMS connection is planned for a later phase, have the team show where advisors read reports during the pilot before it exists.

2. Readiness. Have the team show how the advisor learns that a report for the car at the desk is ready. A status on the repair order, a refreshed list or a message are all possible outcomes of an integration, so the demonstration should run on the dealership's own setup or a test copy of it.

3. Data direction. List the directions this project needs. Candidates include report data sent through the API to the DMS, repair order identifiers coming back to the inspection side, and technician results recorded against the report. For each direction the dealership keeps, name the data, the receiving system and the test that proves it.

4. Responsibility. Name who builds and maintains each connection among Elscope Vision, the DMS provider and dealership IT, and who is called when a report fails to appear.

5. Sequence. Run several arrivals back to back and watch each report land on the right repair order.

Broader DMS, CRM and fleet software integration is the subject of a separate guide to API integration.

Accept the Handoff Only After the Exceptions Work

A normal arrival in a demonstration covers only part of the handoff. It is proven by the cases that break the link between report, visit and status. The table below is an illustrative acceptance template for a pilot.

Log each failure by type during the pilot: linking failures lead back to the matching rule or the integration mapping, and status failures to how technician results are recorded.

FAQ

What should the advisor do if the report is not linked when the customer is at the desk?

The advisor tells whoever owns the matching step, who attaches the report while the write-up continues on the booked job and the customer's concerns. If the report is still missing when the customer leaves the desk, the advisor notes arrival condition the way the store did before the lane, and the report is attached before the car goes to a technician. Logging each case shows whether the misses come from one shift, one lane position or one type of arrival.

How does on-premises deployment affect the handoff?

With an on-premises configuration, the server sits within the dealership's own infrastructure. Dealership IT then plans the connections between the scan station, the server, the advisor desks and the DMS for that configuration, including desks in a separate building and any DMS hosted at group level outside the site.

Map the Report Handoff With Your Own DMS

Share your current DMS setup and the roles at your service drive with the Elscope Vision team, and work through the report handoff path together, from the lane to the advisor desk and the technician, before the configuration is fixed.
